兰宝9-30VDC数字TTL232输出感应距离200-4000毫米超声波传感器
$193.27

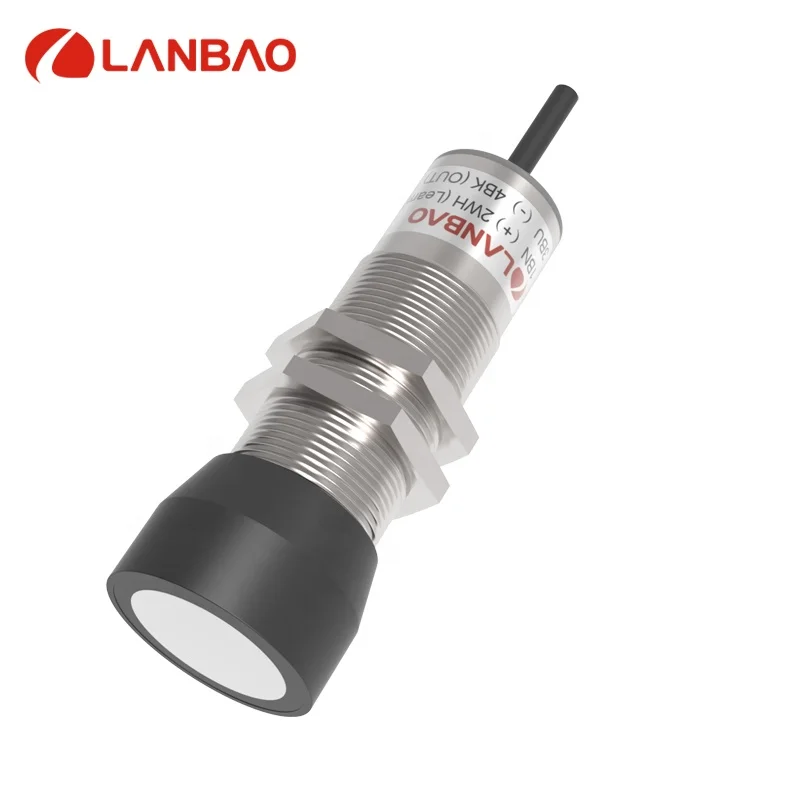

LANBAO 9-30VDC Digital TTL232 output Sensing distance
200-4000MM Ultrasonic Sensor
◆ M30 installation threaded sleeve
◆ Extended long distance detection
◆ 1 NPN or PNP switch output
◆ Analog voltage output 0-5/10V or analog current output 4-20mA
◆ Digital TTL output
◆ Output can be changed through serial port upgrade
◆ Setting detection distance through teach-in lines
◆ Temperature compensation
Product Paramenters
|
NPN
|
NO/NC
|
UR30-CM4DNB-E2
|
PNP
|
NO/NC
|
UR30-CM4DPB-E2
|
|
NPN
|
Hysteresis mode
|
UR30-CM4DNH-E2
|
PNP
|
Hysteresis mode
|
UR30-CM4DPH-E2
|
|
0-5V
|
Analog output
|
UR30-CM4DU5-E2
|
4-20mA
|
Analog output
|
UR30-CM4DI-E2
|
|
0- 10V
|
Analog output
|
UR30-CM4DU10-E2
|
Com
|
TTL232
|
UR30-CM4DT-E2
|
|
Sensing range
|
200-4000mm
|
|
Blind area
|
0-200mm
|
|
Resolution ratio
|
1mm
|
|
Repeat accuracy
|
± 0.15% of full scale value
|
|
Absolute accuracy
|
±1% (temperature drift compensation)
|
|
Response time
|
300ms
|
|
Switch hysteresis
|
2mm
|
|
Switching frequency
|
3Hz
|
|
Power on delay
|
＜500ms
|
|
Working voltage
|
9…30VDC
|
|
No-load current
|
≤25mA
|
|
Indication
|
LED red light: No target detected in teach-in state, always on
|
|
LED yellow light: In normal working mode, the switch status
|
|
|
LED blue light: Target detected in teach-in state, flashing
|
|
|
LED green light: Power indicator light, always on
|
|
|
Input type
|
With teach-in function
|
|
Ambient temperature
|
-25℃…70℃(248-343K)
|
|
Storage temperature
|
-40℃…85℃(233-358K)
|
|
Characteristics
|
Support serial port upgrade and change the output type
|
|
Material
|
Copper nickel plating, plastic accessory
|
|
Protection degree
|
IP67
|
|
Connection
|
4 pin M12 connector
|

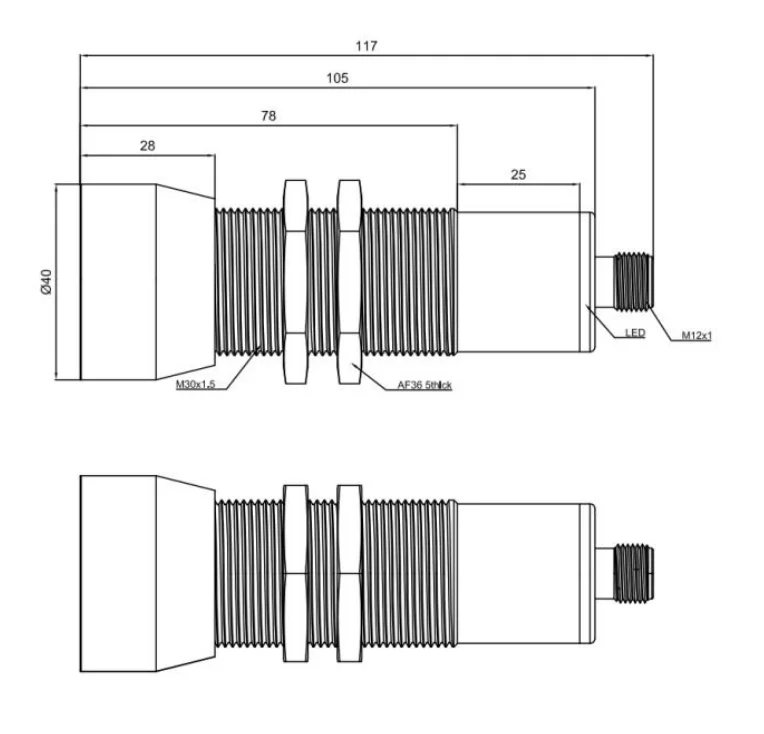

Dimension

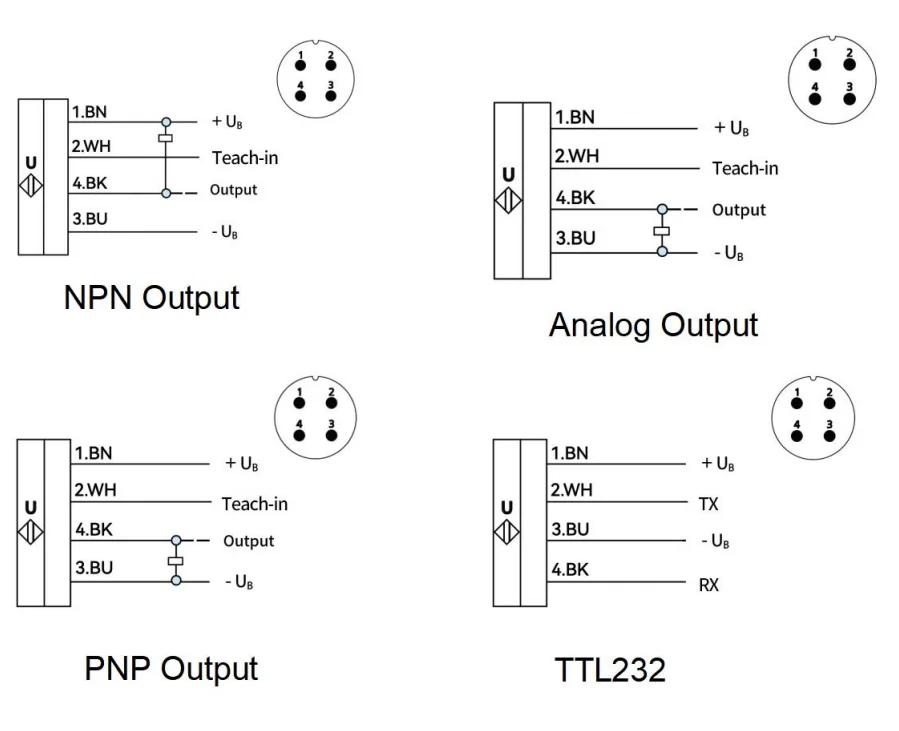

Wiring diagram
Certifications
Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,
ROHS certificates.
ROHS certificates.
